CenturyLink Cloud VPN with Fortigate firewall

After writing the AWS VPN via VPC to Fortigate firewall blog post, a friend asked if I could do the same for setting up a site-to-site VPN with CenturyLink Cloud.

I agreed!

One warning - you can only VPN between RFC1918 (or private) addressing. If you have a mixed network like I have in my lab then the VPN can only exchange traffic between these private addresses.

Let’s start with the Fortigate! The configuration and screenshots are from FortiOS 5.4 on a Fortigate 200D and I’m using port13 as my uplink port.

Just like we started with creating a VPN to AWS (see post) we need to create the phase1 and phase2 interfaces and the tunnel interface:

config vpn ipsec phase1-interface
  edit "to-CTL"
    set interface "port13"
    set keylife 28800
    set proposal aes256-sha256
    set dhgrp 5
    set nattraversal disable
    set remote-gw 64.94.XX.XX
    set psksecret S3kR3tZ
  next
end

config vpn ipsec phase2-interface
  edit "to-CTL"
    set phase1name "to-CTL"
    set proposal aes192-sha1
    set dhgrp 5
    set src-addr-type ip
    set keylifeseconds 3600
    set src-start-ip 64.244.XX.XX
    set dst-subnet 10.144.184.0 255.255.255.0
  next
end

config system interface
  edit "to-CTL"
    set vdom "root"
    set type tunnel
    set interface "port13"  # probably WAN1
  next
end

If you want to then run some diagnostics, you’d see an error like the following:

ike 0: comes 64.94.XX.XX:500->64.244.XX.XX:500,ifindex=22....
ike 0: IKEv1 exchange=Identity Protection id=b83bc5788a2fb9e3/0000000000000000 len=148
ike 0: in B83BC5788A2FB9E300000000000000000110020000000000000000940D00004400000001000000010000003801010801B83BC5788A2FB9E3000000280001000080010007800E01008004000580020004800B0001000C000400007080800300010D000014AFCAD71368A1F1C96B8696FC7757010000000020699369228741C6D4CA094C93E242C9DE19E7B7C60000000500000500
ike 0:b83bc5788a2fb9e3/0000000000000000:0: responder: main mode get 1st message...
ike 0:b83bc5788a2fb9e3/0000000000000000:0: VID DPD AFCAD71368A1F1C96B8696FC77570100
ike 0:b83bc5788a2fb9e3/0000000000000000:0: VID unknown (28): 699369228741C6D4CA094C93E242C9DE19E7B7C60000000500000500
ike 0:to-CTL: ignoring IKE request, no policy configured
ike 0:b83bc5788a2fb9e3/0000000000000000:0: negotiation failure
ike Negotiate ISAKMP SA Error:
ike 0:b83bc5788a2fb9e3/0000000000000000:0: no SA proposal chosen

And all that is doing is telling us that the CenturyLink side is trying to start an IPSEC connection with our Fortigate but as there isn’t a policy created to allow the connection set up to finish.

Adding the policies is straight forward via the GUI or via the CLI (below is a command line example):

config firewall policy
  edit 192
    set srcintf "to-CTL"
    set dstintf "VLAN_0041"
    set srcaddr "ctl-10.144.184.0/24"
    set dstaddr "internal 192.168.247.0/24"
    set action accept
    set schedule "always"
    set service "ALL"
    set logtraffic all
  next
  edit 193
    set srcintf "VLAN_0041"
    set dstintf "to-CTL"
    set srcaddr "internal 192.168.247.0/24"
    set dstaddr "ctl-10.144.184.0/24"
    set action accept
    set schedule "always"
    set service "ALL"
    set logtraffic all
  next
end

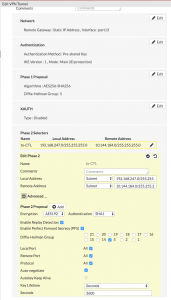

If you look at the GUI configuration for the VPN tunnel it will look something like this:

The CenturyLink side configuration from within their web-based GUI console:

and the result:

..the ping results:

mx:~ % ping -c 5 10.144.184.171
PING 10.144.184.171 (10.144.184.171): 56 data bytes
64 bytes from 10.144.184.171: icmp_seq=0 ttl=52 time=14.663 ms
64 bytes from 10.144.184.171: icmp_seq=1 ttl=52 time=14.769 ms
64 bytes from 10.144.184.171: icmp_seq=2 ttl=52 time=14.705 ms
64 bytes from 10.144.184.171: icmp_seq=3 ttl=52 time=14.695 ms
64 bytes from 10.144.184.171: icmp_seq=4 ttl=52 time=14.621 ms

--- 10.144.184.171 ping statistics ---
5 packets transmitted, 5 packets received, 0.0% packet loss
round-trip min/avg/max/stddev = 14.621/14.691/14.769/0.049 ms
